Prosthetic Cast Mandrel
Precision Support for Prosthetic & Orthotic Fabrication

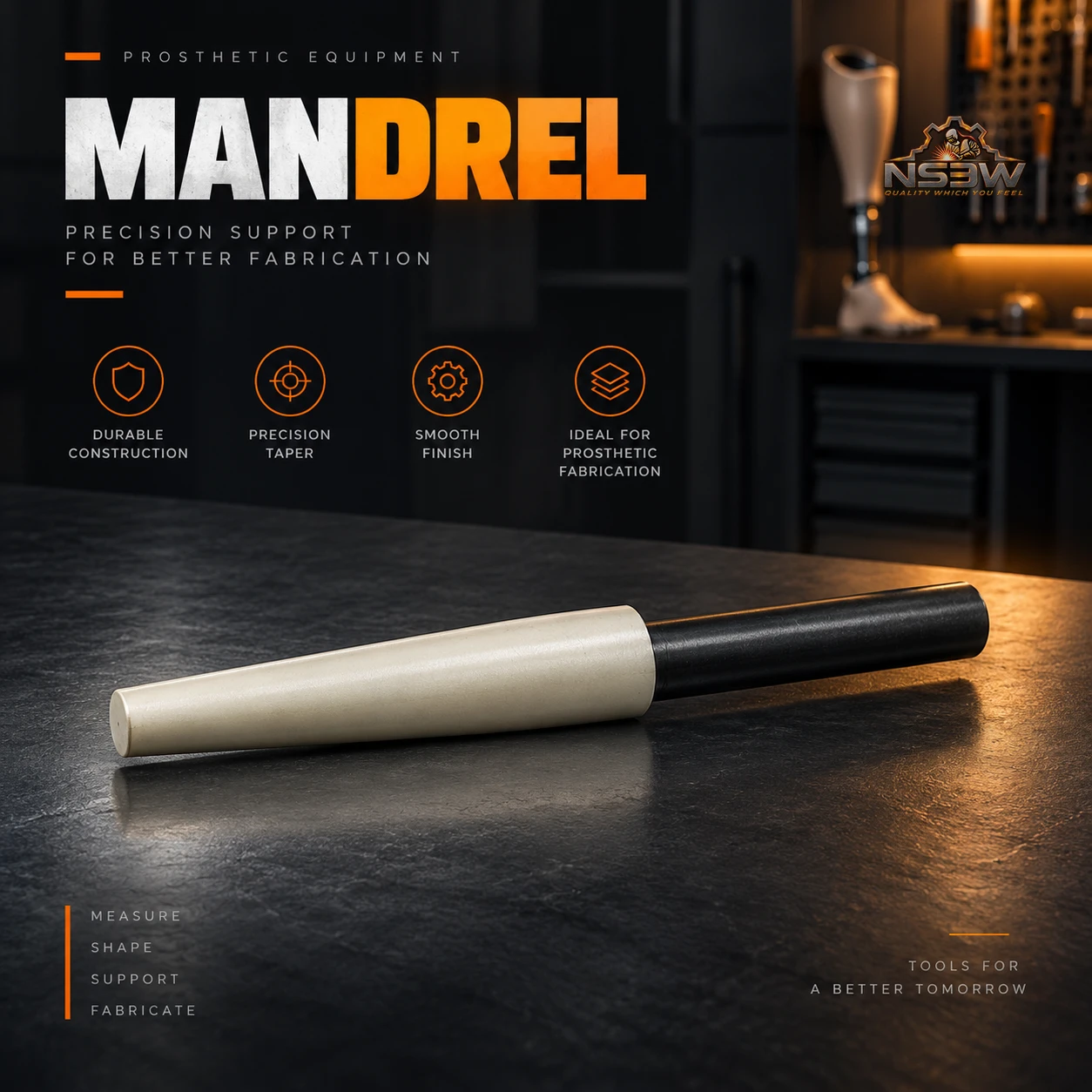

The NSEW Prosthetic Cast Mandrel is a tapered workshop tool designed for positive cast preparation and related prosthetic and orthotic fabrication processes.
Overview
What The Mandrel Does
The NSEW Prosthetic Cast Mandrel is a specialized workshop tool designed for use during prosthetic and orthotic fabrication and positive model preparation.
In traditional prosthetic fabrication workflows, mandrels can be incorporated during preparation of positive plaster models. A tapered mandrel can be used to create or maintain a longitudinal passage through the positive model and provide a practical interface for subsequent fabrication operations.
In suitable vacuum-forming workflows, an internal passage created with a mandrel can form part of the airflow arrangement used when thermoplastic material is formed over a positive model.
The tapered profile also facilitates practical insertion and removal during appropriate cast-preparation procedures.
Designed for repeated workshop use, the NSEW Mandrel provides prosthetic and orthotic technicians with a simple and robust fabrication tool for positive-model preparation and related P&O fabrication processes. For secure positioning during appropriate fabrication procedures, compatible mandrels may be used with a prosthetic modification vice.
Key Features
Built For The Workshop Floor
Tapered Profile
Designed with a tapered working profile suitable for positive cast preparation.
Rigid Construction
Designed to provide dependable support during prosthetic and orthotic workshop fabrication.
Smooth Working Surface
A smooth working profile facilitates practical handling during appropriate cast-preparation processes.
Positive Cast Application
Designed for use with positive models/casts during prosthetic and orthotic fabrication.
Fabrication Support
Suitable for use as part of traditional P&O cast-preparation and fabrication workflows.
Reusable Workshop Tool
Designed for repeated use in prosthetic and orthotic fabrication environments when properly maintained.
Simple Operation
Straightforward mechanical workshop tool requiring no electrical operation.
Professional P&O Application
Suitable for prosthetic and orthotic workshops, fabrication laboratories and training facilities.
Where It's Used
Applications
- Prosthetic fabrication workshops
- Orthotic fabrication workshops
- Positive plaster model preparation
- Cast preparation
- Prosthetic socket fabrication workflows
- Orthotic fabrication workflows
- Fabrication laboratories
- P&O training institutes
Confirmed Data
Technical Specifications
Only confirmed and general specification data is listed below. Overall length, taper length, diameters, weight and exact material grade are available on enquiry.
| Product Name | Prosthetic Cast Mandrel |
|---|---|
| Display Name | Mandrel |
| Product Type | Tapered Cast Mandrel |
| Product Category | Prosthetic & Orthotic Fabrication Tool |
| Application | Prosthetic & Orthotic Fabrication |
| Primary Use | Positive Cast / Model Preparation |
| Profile | Tapered |
| Operation | Manual |
| Power Requirement | None / Manual Tool |
| Reusable | Yes |
| Suitable For | Prosthetic & Orthotic Workshops, Fabrication Laboratories and Training Centres |
Workshop Use
How Is a Prosthetic Cast Mandrel Used?
A prosthetic cast mandrel is used as part of positive-model preparation and fabrication workflows. Depending on the fabrication method, the mandrel may be positioned during preparation of a positive plaster model to establish a stable internal support or longitudinal passage.
In suitable vacuum-forming workflows, passages through the positive model can help distribute vacuum around the model so heated thermoplastic material conforms to its contours.
The exact fabrication procedure depends on the prosthetic or orthotic application, workshop technique and associated equipment.
Why Choose NSEW
Built By The Same Workshop, Every Time
- 15+ years manufacturing prosthetic and orthotic workshop equipment from Naraina Industrial Area, Delhi
- Tooling built and quality-inspected in-house alongside NSEW's Modification Vice and wider workshop range
- Direct manufacturer contact for fabrication guidance and quote-ready specification support
Common Questions
Mandrel FAQ
What is a prosthetic cast mandrel?
A prosthetic cast mandrel is a workshop tool used during positive cast or model preparation in prosthetic and orthotic fabrication. Tapered mandrels can also be used to establish an internal passage within a positive model for appropriate fabrication workflows.
What is a prosthetic mandrel used for?
A prosthetic mandrel is used during positive-model preparation and related fabrication processes. Its exact function depends on the prosthetic or orthotic fabrication technique being used.
Why is a prosthetic cast mandrel tapered?
A tapered profile facilitates practical positioning and removal during appropriate cast-preparation procedures.
Can a prosthetic mandrel be used during vacuum forming?
In suitable fabrication methods, a mandrel can help establish an internal passage within a positive model that forms part of the airflow arrangement used during vacuum forming. The exact setup depends on the fabrication method and equipment.
Can the NSEW Mandrel be used with a Modification Vice?
A compatible mandrel can be held using an appropriate modification vice or workholding system. Compatibility depends on the dimensions and design of both products.
Where are prosthetic cast mandrels used?
They are commonly used in prosthetic and orthotic workshops, fabrication laboratories and P&O training facilities.
Is the NSEW Prosthetic Cast Mandrel electrically operated?
No. It is a manual workshop fabrication tool and does not require electrical power.
Is a prosthetic cast mandrel a prosthetic component?
No. A cast mandrel is a workshop fabrication tool used during prosthetic and orthotic manufacturing processes rather than a finished patient-worn prosthetic component.
